<canvas>는 canvas api를 사용할 수 있는 창이다.
하드웨어 가속이 가능하다.
퀄리티를 올리기 위해서 width와 height는 자바스크립트로만 수정한다.
const canvas = document.querySelector("canvas");
const ctx = canvas.getContext("2d");
canvas.width = 800;
canvas.height = 800;
ctx.fillRect(50,50,100,200);
===================
canvas {
width: 800px;
height: 800px;
border:5px solid black;
}
body{
display: flex;
justify-content: center;
align-items: center;
}
=====================
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Meme Maker</title>
<link rel="stylesheet" href="styles.css">
</head>
<body>
<canvas>
</canvas>
<script src="app.js"> </script>
</body>
</html>
fillRect는 일종의 숏컷임 원래는 출발지와 목적지를 정하고 선으로 그은 후 채우는 과정을 거처야함

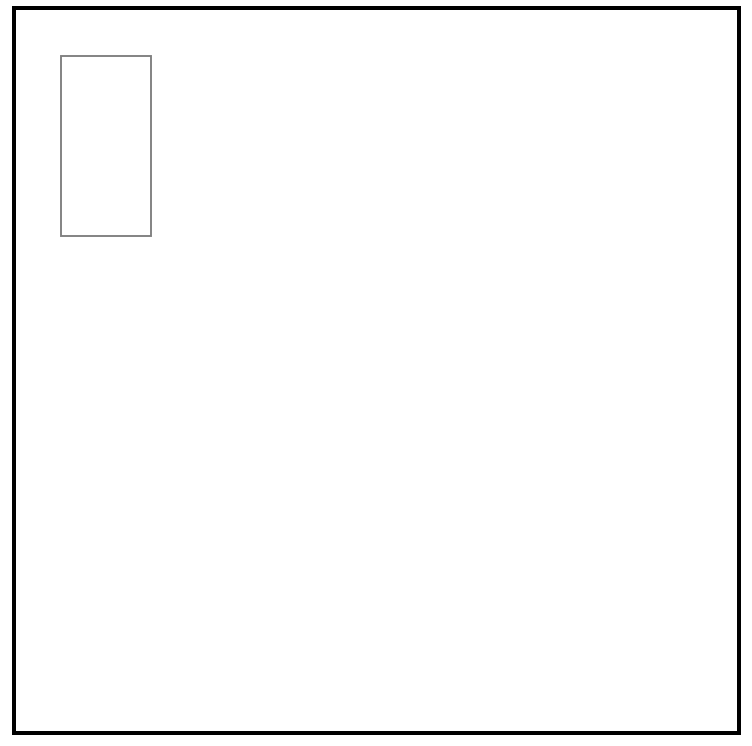

ctx.rect(50,50,100,200);
ctx.stroke();
// ctx.fill();
ctx.rect(50,50,100,100);
ctx.rect(150,150,100,100);
ctx.rect(250,250,100,100);
ctx.rect(350,350,100,100);
ctx.stroke();

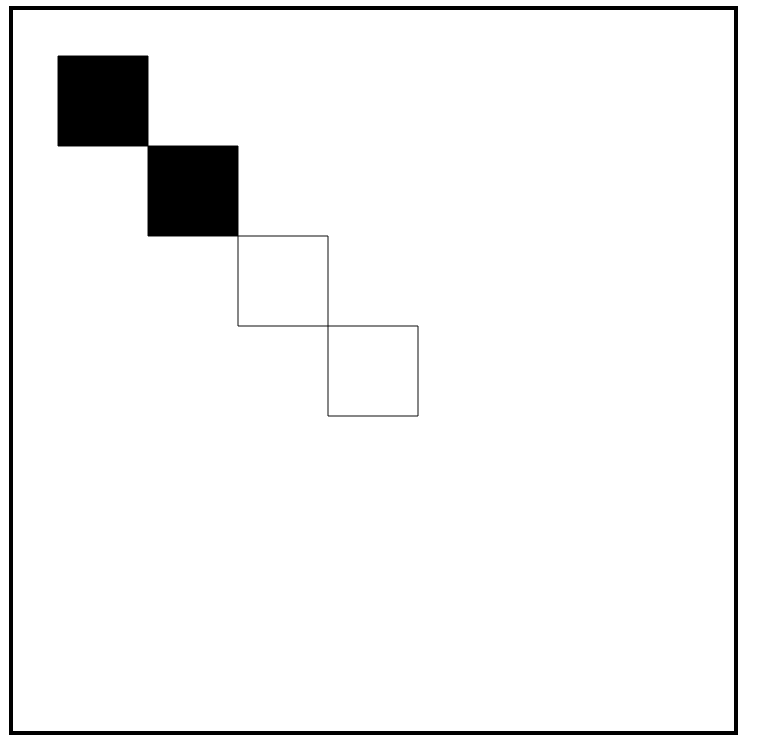

ctx.rect(50,50,100,100);
ctx.rect(150,150,100,100);
ctx.fill();
ctx.rect(250,250,100,100);
ctx.rect(350,350,100,100);
ctx.stroke();

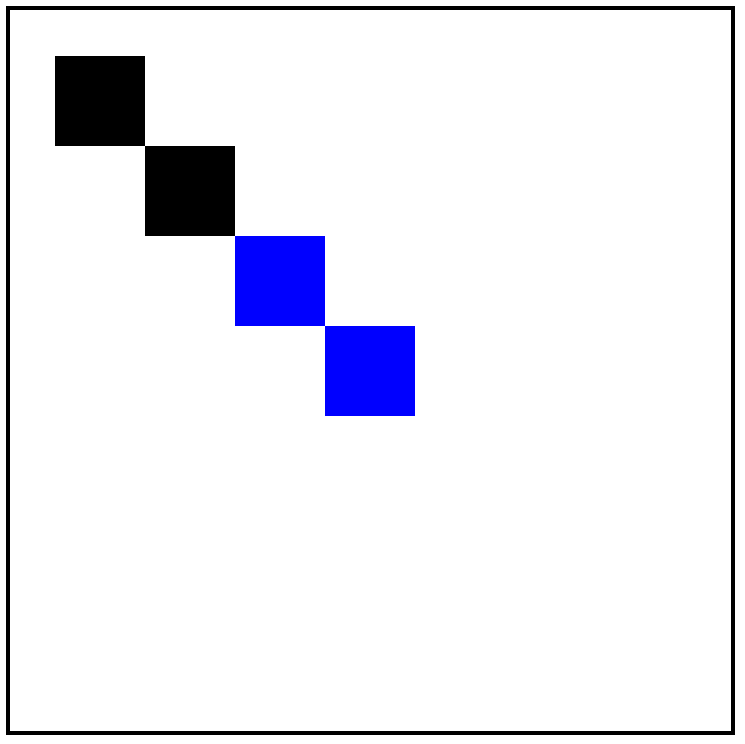

canvas는 하나의 경로임 따라서 한곳에 설정을 넣으면 모든 경로에 전파된다고 생각하면됨
따라서 설정을 그만 넣고 싶으면 새로운 패스(경로)를 만들면 된다.
ctx.rect(50,50,100,100);
ctx.rect(150,150,100,100);
ctx.fill();
ctx.beginPath();
ctx.rect(250,250,100,100);
ctx.rect(350,350,100,100);
ctx.fillStyle="blue";
ctx.fill();
사실 rect도 숏컷이다. 점과 점을 이어주는 것을 알아서 해주기 때문이다.

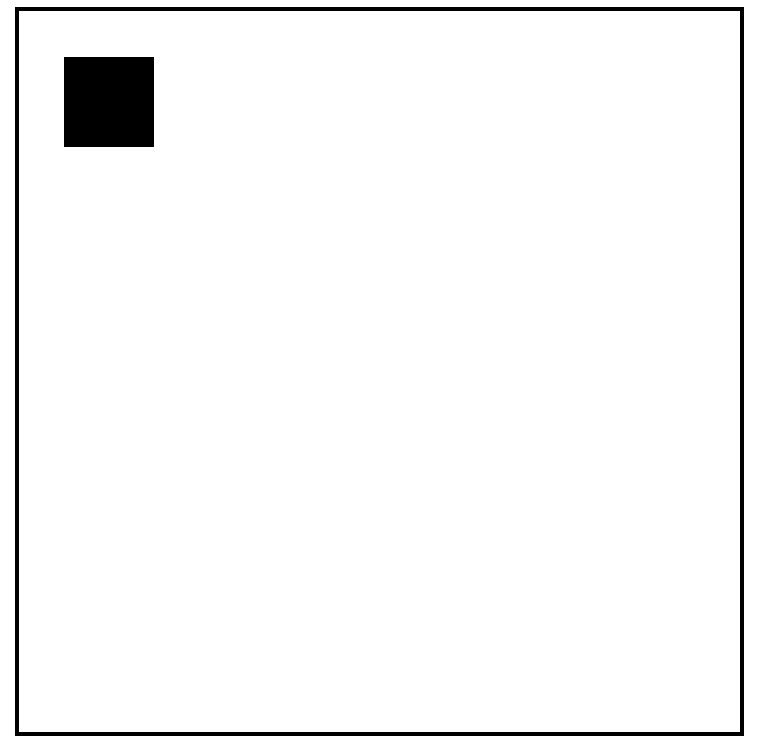

ctx.moveTo(50,50);
ctx.lineTo(150,50);
ctx.lineTo(150,150);
ctx.lineTo(50,150);
ctx.lineTo(50,50);
ctx.fill();

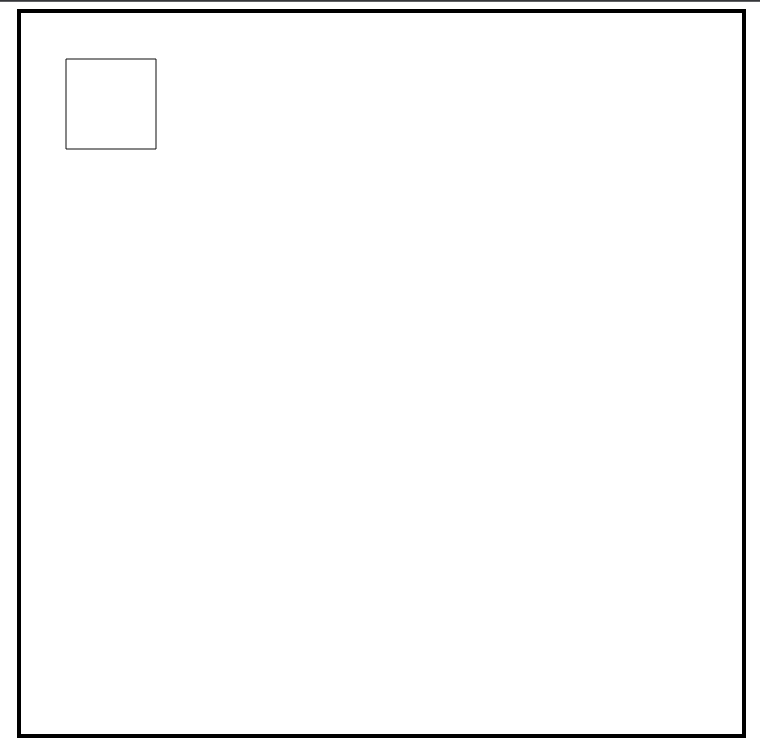

ctx.moveTo(50,50);
ctx.lineTo(150,50);
ctx.lineTo(150,150);
ctx.lineTo(50,150);
ctx.lineTo(50,50);
ctx.stroke();
ctx.fillRect(200,200,50,200);
ctx.fillRect(400,200,50,200);
ctx.lineWidth = 20;
ctx.strokeRect(300,300,50,100);
ctx.fillRect(200,200,200,20);
//지붕
ctx.moveTo(200,200);
ctx.lineTo(325,100)
ctx.lineTo(450,200)
ctx.fill();

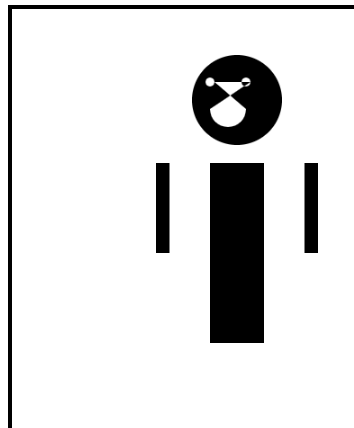

ctx.arc()를 하게 되면 현재 path의 마지막 좌표와 생성될 arc의 첫 번째 좌표 사이에 ctx.lineTo()가 작동되어서 의도치 않은 선이 생긴다.

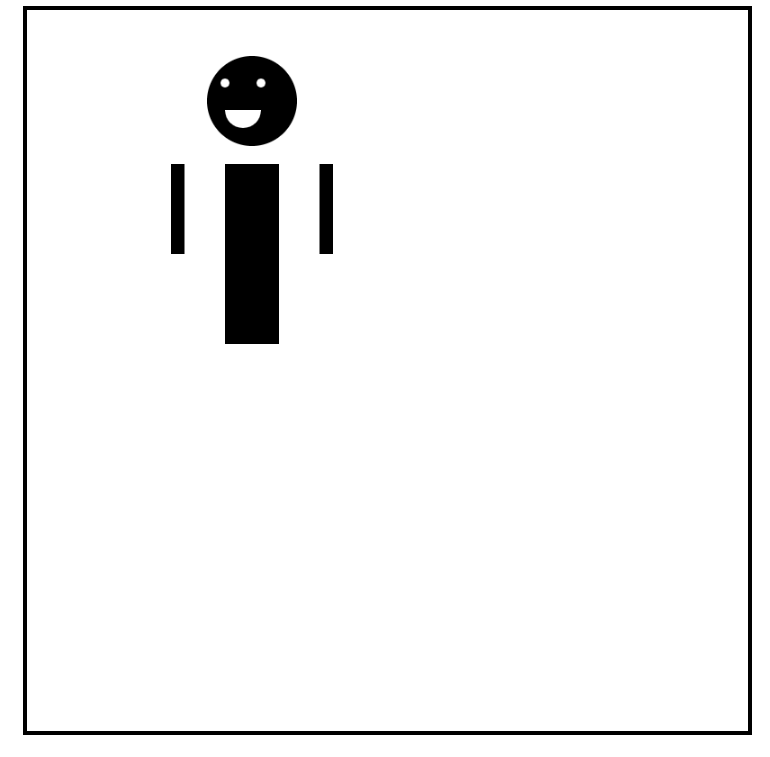

ctx.fillRect(200 - 40,200-30,15,100);
ctx.fillRect(365 - 40,200-30,15,100);
ctx.fillRect(260 - 40,200-30,60,200);

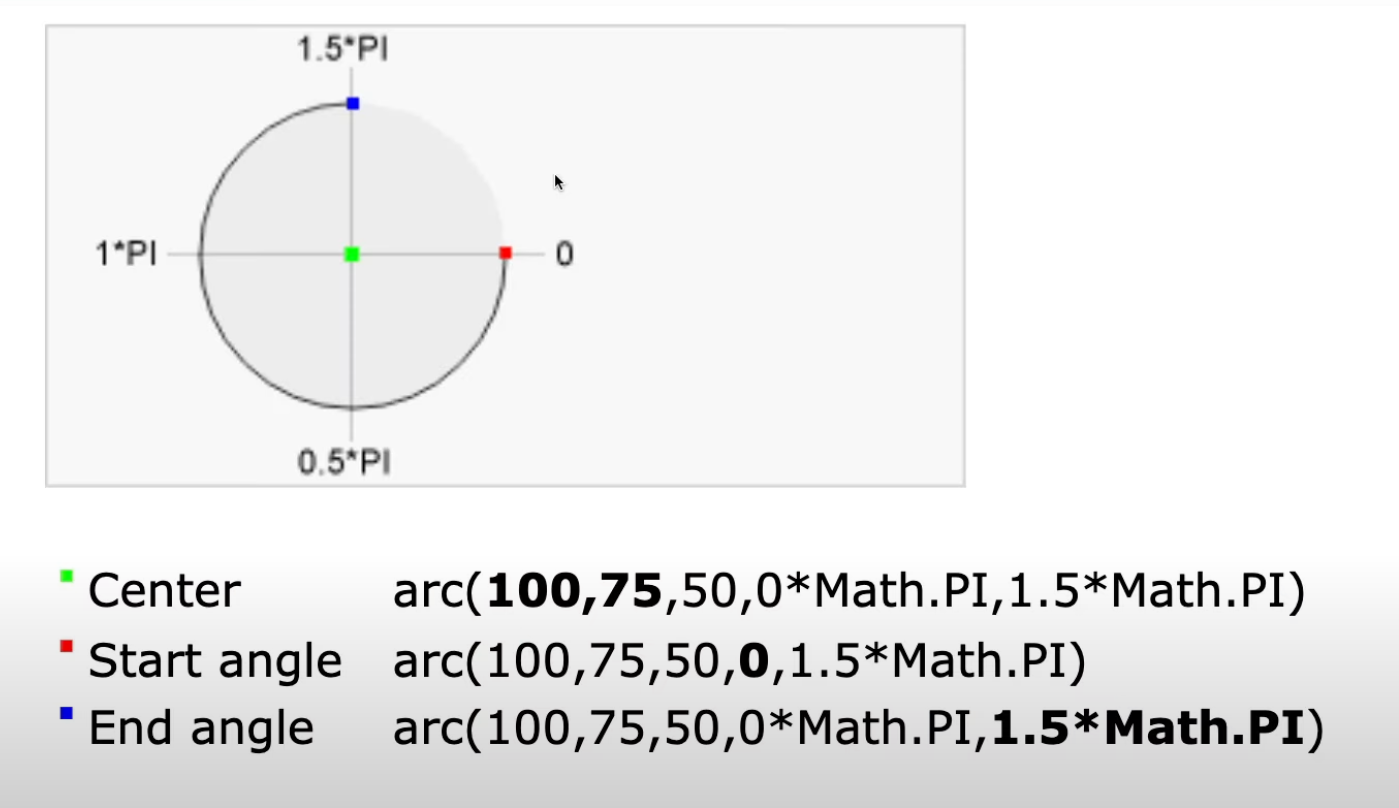

//radius가 의미하는 것은 반지름임
ctx.arc(250,100,50,0,2*Math.PI);
ctx.fill();
ctx.beginPath();
ctx.fillStyle="white";
ctx.arc(260,80,5,0,2*Math.PI);
ctx.arc(220,80,5,0,2*Math.PI);
ctx.moveTo(240,110);
ctx.fillStyle="white"
ctx.arc(240,110,20,0,1*Math.PI);
ctx.fill();
ctx.fillRect(200 - 40,200-30,15,100);
ctx.fillRect(365 - 40,200-30,15,100);
ctx.fillRect(260 - 40,200-30,60,200);
//radius가 의미하는 것은 반지름임
ctx.arc(250,100,50,0,2*Math.PI);
ctx.fill();
ctx.beginPath();
ctx.fillStyle="white";
ctx.arc(260,80,5,0,2*Math.PI);
ctx.arc(220,80,5,0,2*Math.PI);
// ctx.moveTo(240,110);
ctx.fillStyle="white"
ctx.arc(240,110,20,0,1*Math.PI);
ctx.fill();

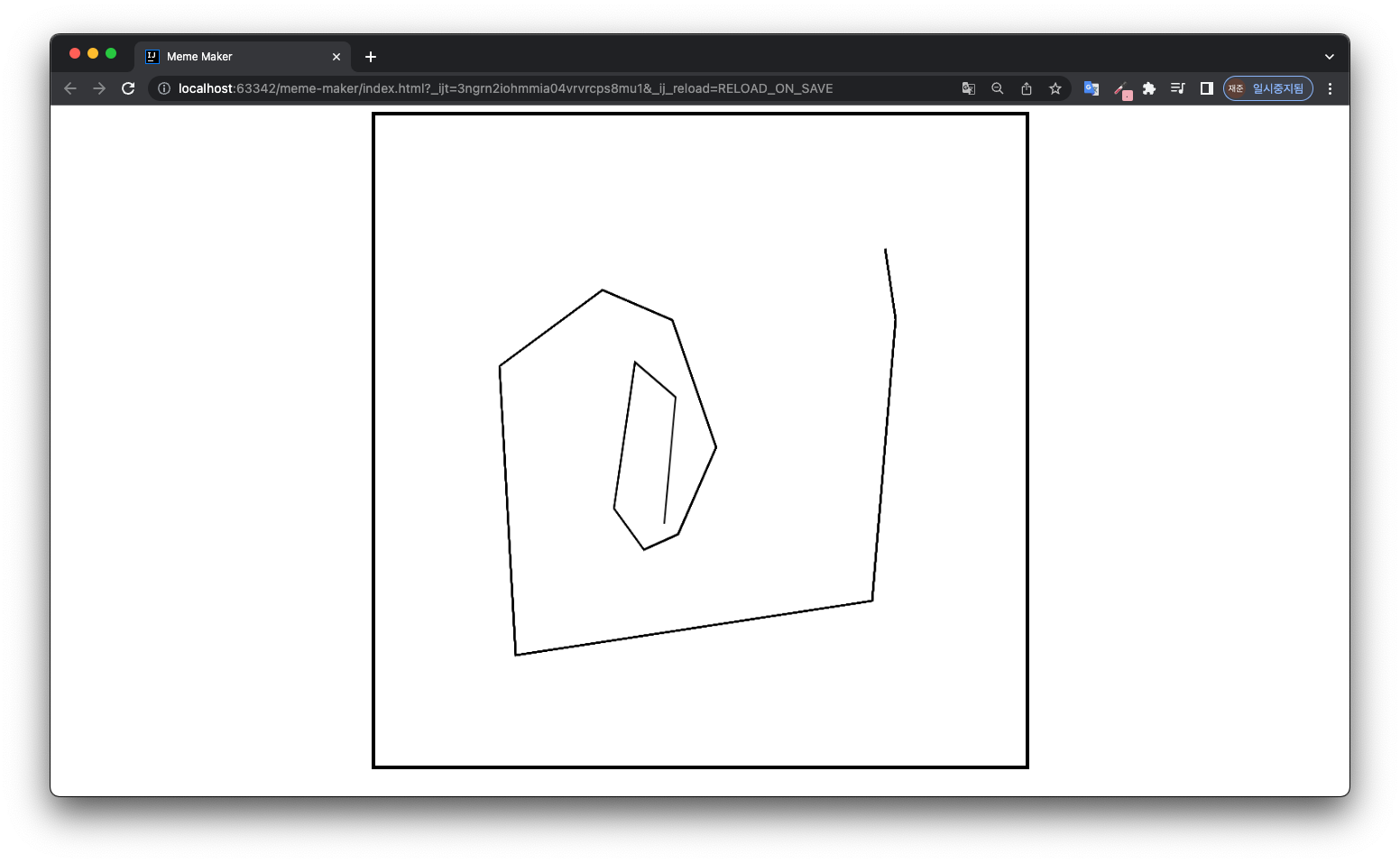

드로잉
const ctx = canvas.getContext("2d");
canvas.width = 800;
canvas.height = 800;
ctx.lineWidth=2;
function onClick(event){
ctx.lineTo(event.offsetX,event.offsetY);
ctx.stroke();
}
canvas.addEventListener("click", onClick);
const canvas = document.querySelector("canvas");
const ctx = canvas.getContext("2d");
canvas.width = 800;
canvas.height = 800;
ctx.lineWidth=2;
const colors = [
"#ff3838",
"#ffb8b8",
"#c56cf0",
"#ff9f1a",
"#fff200",
"#32ff7e",
"#7efff5",
"#18dcff",
"#7d5fff",
];

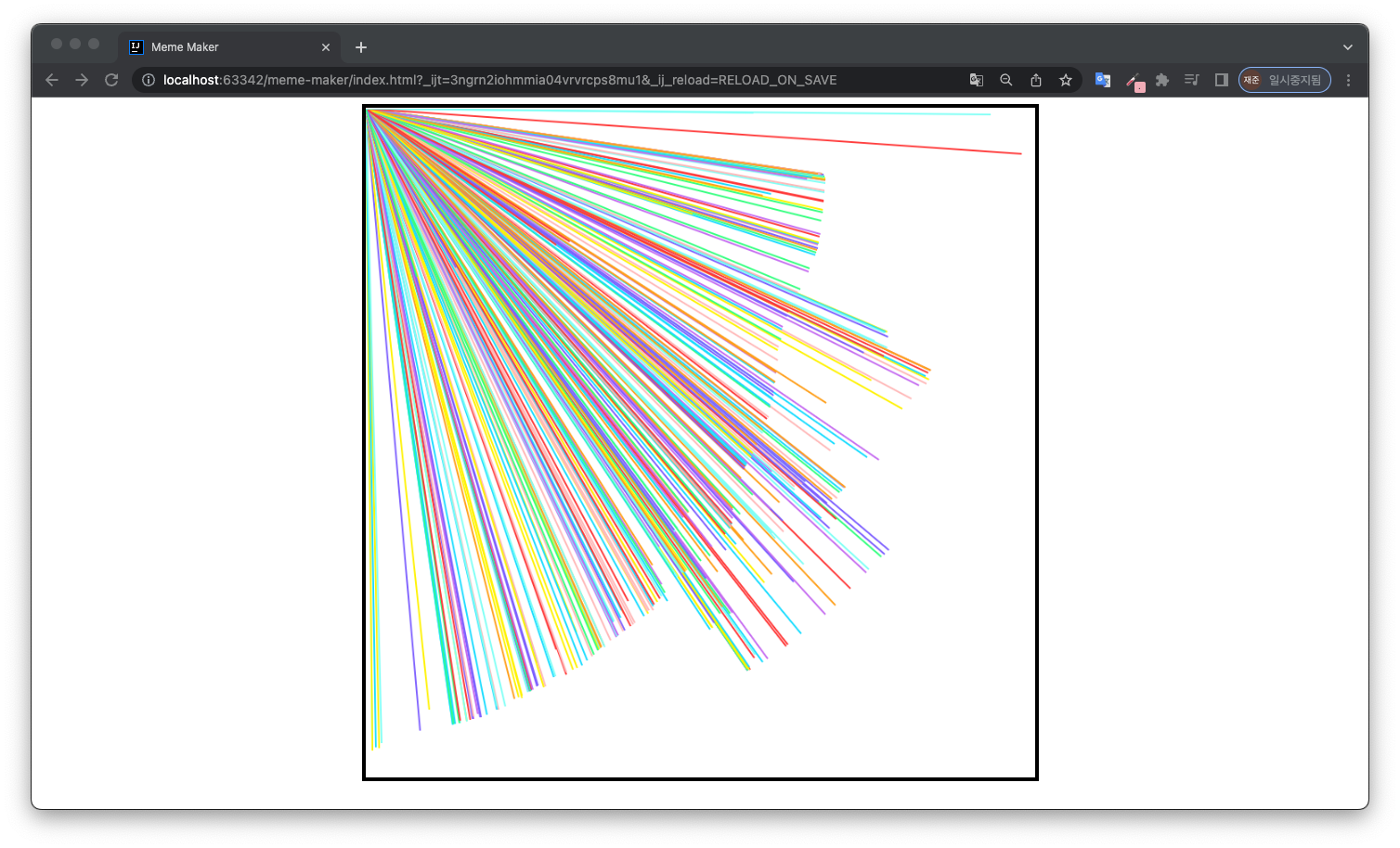

function onClick(event){
ctx.beginPath();
ctx.moveTo(0,0);
const color = colors[Math.floor(Math.random()*colors.length)];
ctx.strokeStyle = color;
ctx.lineTo(event.offsetX,event.offsetY);
ctx.stroke();
}
canvas.addEventListener("mousemove", onClick);

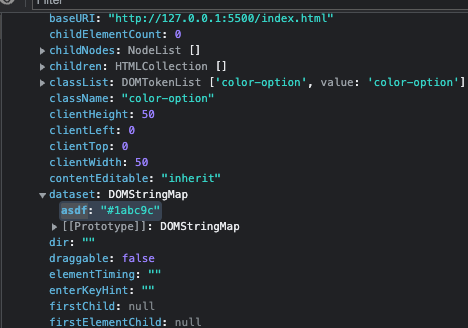

<div class="color-option" style="background-color: #3498db" data-color="#3498db"></div>
data-ABCD는
dataset에 ABCD로 저장된다.
function onDoubleClick(event){
ctx.save();
const text = textInput.value;
ctx.lineWidth=1;
ctx.strokeText(text,event.offsetX,event.offsetY);
ctx.restore();
}
ctx.save()는 현재의 캔버스의 환경설정을 저장함
ctx.restore은 저장했던 환결설정을 복구함
function onSaveClick(){
const url = canvas.toDataURL();
const a = document.createElement("a");
a.href = url;
a.download = "myDrawing.png"
a.click();
}
canvas를 데이터url로 만드는거임
a태그를 만들고 그 태그의 링크를 canvas url로 지정함
https://mine-it-record.tistory.com/445
[HTML] <a> 태그로 가볍게 특정 파일 다운로드 받기 (ft. download attribute)
- tag download Attribute - 태그를 통해 간단하게 파일 다운로드 하는 방법에 대해 알아보자. 태그에는 download 라는 속성이 존재하는데 이는 href에 지정된 파일을 다운로드해주는 기능이다. 이렇듯 복
mine-it-record.tistory.com
a 태그에 download 옵션을 추가하고 이름으로 myDrawing.png로 지정한후 자바스크립트에서 클릭을 하게 하여 결과적으로 파일이 다운로드 됨
button{
all:unset;
}
모든 css 속성을 삭제한다. border:0이런식으로 css를 삭제할 필요가 없다.
